Oct 96

All the sections currently cover one storm, Oct 96. Use the form below to switch to the standard sections for another storm.

Storm:

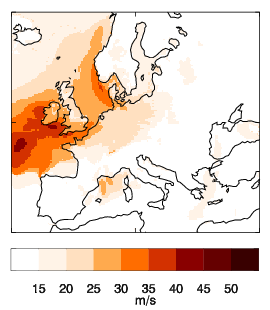

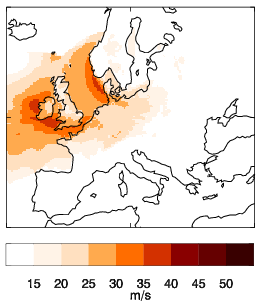

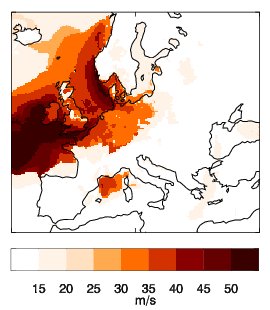

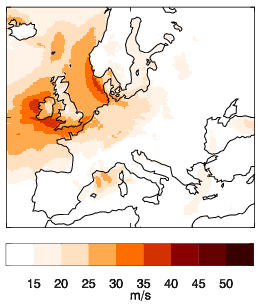

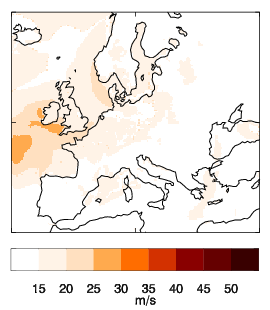

The sections below show: 1) details and statistics; 2) gust speed animation showing the track and instantaneous 3-second gusts at 3 hour intervals over a 72 hour period; 3) storm tracks showing the maximum in relative vorticity and minimum in MSLP, while labels on the maximum relative vorticity path indicate the start of that day; 4) raw footprint is described in Storm footprints; 5) uncontaminated raw footprint only includes gusts local to the storm (as described on Storm footprints); 6) observational footprint from MIDAS database; 7) recalibrated lower 95% bound is described in Recalibration of final storm footprints; 8) recalibrated mean is described in Recalibration of final storm footprints; 9) recalibrated upper 95% bound is described in Recalibration of final storm footprints; 10) raw models gusts versus observed gusts is described in Comparison of model footprints to station data; 11) recalibrated models gusts versus observed gusts showing the 95% bounds as error bars. Where data is available, links are provided under figure.

Countries affected: Denmark, Ireland, Norway and United Kingdom
Storm duration: 9:00 20 October - 15:00 2 November 1996
Maximum 925 hPa wind speed over land from ERA Interim re-analysis (Umax): 35.87ms-1
Date Umax: 28 October 1996
Sft (rank of storm): 16.98e06 (37)
N: 368
Maximum relative vorticity at 850hPa from ERA-Iterim reanalysis (ζmax): 1.11e-04s-1
Date of ζmax: 21:00 27 October 1996
Location of ζmax: (15.8W, 51.2N)
Minimum mean sea level pressure from ERA-Interim reanalysis: 968.7hPa
Date of min MSLP: 9:00 28 October 1996
Location of min MSLP: (10.9W, 53.6N)

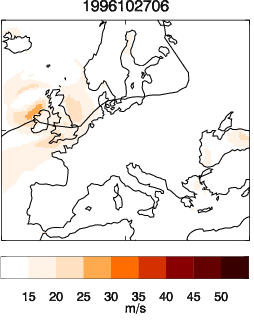

Image of Gust speed animation for Oct 96

 Maximum Vorticity

 Minimum MSLP

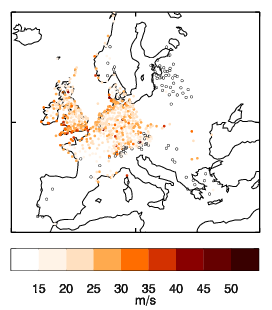

Image of Observational footprint for Oct 96

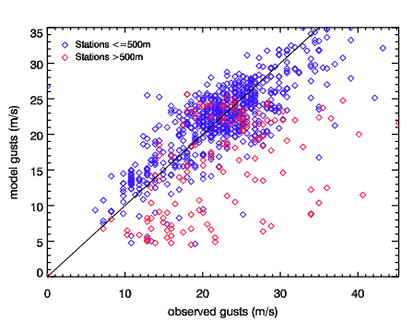

Image of Raw models gusts versus observed gusts for Oct 96

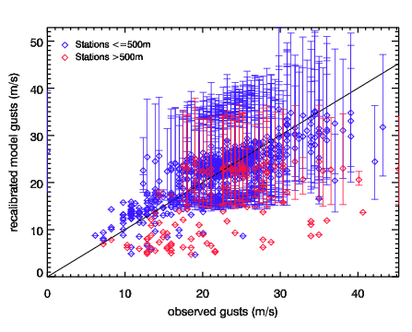

Image of Recalibrated models gusts versus observed gusts for Oct 96
